Model NO.: HF105F
Size: 142 X 125 X 187mm
Weight: 1055g
Working Temperature: -20 ~ 60 Degree
Image Sensor: 1/2.8-Inch CMOS, Effective Pixels: 4.09m
Thermal Sensor: 640(H) X 512(V)
Laser Range: 5-2000m
Transport Package: Packing
Specification: HF105F
Trademark: HFHW
Origin: China
Production Capacity: 2000
Product Description

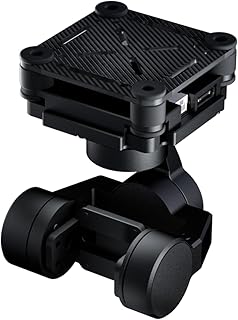

The HF105F equips with a high accuracy 3-axis nonorthogonal pod, an 120x hybrid zoom camera and a long-wave thermal camera, which can provide visual and infrared images simultaneously. Thanks to the laser range finder, the D-125AI can provide the location of a target and the distance to it that improves working efficiency.

The HF105F have AI multi-object detection and tracking function. The gimble camera can intelligently identify the persons and vehicles in the image, and constantly track one of them.

The HF105F can be mounted tool-lessly onto multiple carriers, whether downward or upward. With the GCU and the Dragonfly software, user can watch the image from the camera and control the pod real-timely on a computer.

Product Parameters

General
Product Name HF105F
Dimensions

142 x 125 x 187mm

Weight

1055g

Operating Voltage 20 ~ 53 VDC
Power

10.7W (Static, ranging off)/ 40.0W (Peak, ranging on)

Mounting Downward / Upward
Target Positioning Accuracy[1] Horizonal Error:1.8m

Vertical Error:0.7m

Horizonal Distance:105m

Relative Height:75m

Horizonal Error:17.4m

Vertical Error:6.7m

Horizonal Distance:513m

Relative Height:119m

Horizonal Error:33.8m

Vertical Error:13.7m

Horizonal Distance:1003m

Relative Height:246m

Gimbal
Gimbal Type 3-axis Nonorthogonal Mechanical Stabilization
Angular Accuracy ±0.01 °
Controllable Range Pitch: -120 °~40 °, Roll: ±40 °, Yaw: ±360 °constantly
Max Controllable Speed ±200 °/s
Zoom Camera
Image Sensor 1/2.8-inch CMOS, Effective Pixels: 4.09M
Lens

Actual Focal Length: 4.7~141mm (Equivalent focal length: 27.9~837mm)

Aperture: f/1.5~f/4.0

HFOV: 59.5 °~ 2.2 °

VFOV: 35.8 °~ 1.2 °

DFOV: 66.6 °~ 2.5 °

Resolution 2688(H) x 1520(V)
Pixel Size 2.0Î¼m(H) x 2.0Î¼m(V)
Optical Zoom Rate 30x
Equivalent Digital Zoom Rate 4x
Object Detection Distance EN62676-4:2015

Person[2]:3283m

Light vehicle[3]:4315m

Large vehicle[4]:9192m

Johnson Criteria

Person:37500m

Light vehicle:115000m

Large vehicle:245000m

Object Identification Distance EN62676-4:2015

Person:657m

Light vehicle:863m

Large vehicle:1838m

Johnson Criteria

Person:9375m

Light vehicle:28750m

Large vehicle:61250m

Object Verification Distance EN62676-4:2015

Person:328m

Light vehicle:432m

Large vehicle:919m

Johnson Criteria

Person:4688m

Light vehicle:14375m

Large vehicle:30625m

Thermal Camera
Thermal Sensor Uncooled VOx Microbolometer
Lens

Focal Length: 25mm (Equivalent focal length: 93.2mm)

Aperture: f/1.0

HFOV: 17.5 °

VFOV: 14.0 °

DFOV: 22.3 °

Resolution 640(H) x 512(V)
Pixel Pitch 12Î¼m(H) x 12Î¼m(V)
Equivalent Digital Zoom Rate 8x
Spectral Band 8~14Î¼m
Sensitivity (NETD) <50mk@F1.0@25 ºC
Object Detection Distance Johnson Criteria

Person:1042m

Light vehicle:3194m

Large vehicle:6806m

Object Identification Distance

Person:260m

Light vehicle:799m

Large vehicle:1701m

Object Verification Distance

Person:130m

Light vehicle:399m

Large vehicle:851m

Temperature Measurement Optional (Temperature Measurement Type)
Temperature Measurement Method Spot Measurement, Area Measurement
Temperature Measurement Range

High Gain: -20 °C~150 °C

Low Gain: 0 °C~550 °C

Temperature Alert High-temp Alert, Low-temp Alert
Sun Burn Protection Supported[5]
Palette White Hot, Black Hot, Tint, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2
Laser Range Finder
Wavelengt 905nm
Max Laser Power 1mW
Beam Angle 2.5mrad
Beam Diameter 0.25m@100m
Laser Safety Class 1M(IEC 60825-1:2014)
Measurement Accuracy ±0.3m(â‰¤ 300m)/ ±1.0m(>300m)
Measurement Range 5-2000m (Ï• 12m vertical surface with 20% reflectivity)
AI Multi-object Detection & Tracking
Object Identification Size â‰¥ 30x20 px
Object Identification Rate â‰¥ 85%
Object Identification Quantity â‰¤ 50
Target Tracking Size 16x16~256x256 px
Tracking Deviation Refresh Rate 30Hz
Tracking Deviation Output Delay â‰¤ 60ms
Target Pixel Error â‰¤ ±1 px
Tracking Speed >24 px/ frame
Target Memory Time >5s
Image & Video
Image Format JPEG
Maximum Image Resolution 1920 x 1080
EXIF Shooting point coordinate
Video Format MP4
Maximum Video Resolution

Stream: 1920 x 1080 @25fps

Recording: 1920 x 1080 @30fps

Stream Encode Format H.264,H.265
Stream Network Protoco RTSP
Storage
Supported SD Cards Supports a U3/V30 or above MicroSD card with a capacity of up to 256GB
Environment
Operating Temperature -20 ºC~50 ºC
Storage Temperature -40 ºC~60 ºC
Operating Humidity â‰¤85%RH (Non-condensing)

[1] Measured by gimbal mounted on a dual antenna RTK positioned multicopter drone to a known coordinate point.

The target positioning accuracy is influenced by carrier's positioning and orientation accuracy, angle between the

direction of pod mounted and the heading of carrier, slant range, gradient of measurement line and air quality.

The data is for reference only.

[2] Reference dimension of person: 1.8x0.5m. Critical dimension under Johnson criteria is 0.75m.

[3] Reference dimension of light vehicle: 4.2x1.8m. Critical dimension under Johnson criteria is 2.3m

[4] Reference dimension of large vehicle: 6.0x4.0m. Critical dimension under Johnson criteria is 4.9m.

[5] Do not expose the thermal camera lens to a strong energy source such as sun, lava or laser beam. The

temperature of the observation target should not exceed 600 ºC, otherwise it will cause permanent damage.

Detailed Photos
