Model NO.: UFH-MAT
Outside Diameter: 3.6mm
Conductor Insulation Material: Fluoroplastic
Protective Jacket: PVC
Power Output: 150W/M2&200W/M2
Transport Package: Carton
Specification: Accept customize
Trademark: Anhui Juhe
Origin: Anhui, China
HS Code: 8516800000
Production Capacity: 100000sqm/Month
Product Description

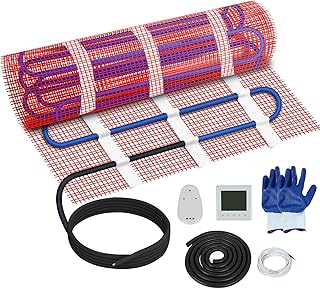

UFH-MAT uses a twin conductor heating cable for ease of installation and very low EMF. The mat thickness of only 3.6mm enables underfloor heating installations into most quality two-part adhesive with a minimum increase in floor height.
Product details:
Picture Model NO.: UFH-MAT

Cable constrution: Twin condcutor
Conductor insulation : Fluoroplastic
Protective jacket: PVC
Connector: Out splice
Wattage output: 150w/m ²&200w/m ²
Cable Thickness: 3.6mm
Cable Spacing 80mm
Cold Tail Length: 2.5m
Resistance tolerance: +10/-5 %
Earth Type: 100% Coverage Earth Shield
Rated voltage: 220V

Underfloor heating mat features and advantages:
Tough, Safe, Long Lasting Heating Element
â€¢ Thin 3.6mm cable thickness keeps the increase in floor height to a minimum.
â€¢ Tough Fluoropolymer conductor insulation with resilient PVC outer insulation ensuring durability.
â€¢150w/m2 heating mats are suitable as a primary heating source. These are our most commonly used mats for kitchens, dining rooms, large bathrooms and most other areas with tiled floors.
Mat Design
â€¢ Easy installation with zero maintenance required. Once installed there is nothing to leak or burst and nothing to flush, bleed, clean or service.
â€¢Grid structure, simple installation.
â€¢100% AI tape braid, zero EMR.
â€¢Twin condcuter design, only one cold lead
â€¢Metal ground wire, keep you safe
â€¢Each cable test 13 times before delivery
â€¢Waterproof IP68
Technical data
150w/m2
Part NO. Heat Area Mat dimensions Wattage(150w/m2) Resistance(Î©)
(m2) sq.ft (mxm) (inch x inch)
UFH-MAT150-1.0 1 10.80 0.5Ã—2 1.64x6.56 150 322.67
UFH-MAT150-1.5 1.5 16.15 0.5Ã—3 1.64x9.84 225 215.11
UFH-MAT150-2.0 2 21.53 0.5Ã—4 1.64x13.12 300 161.33
UFH-MAT150-2.5 2.5 26.91 0.5Ã—5 1.64x16.4 375 129.07
UFH-MAT150-3.0 3 32.29 0.5Ã—6 1.64x19.68 450 107.56
UFH-MAT150-4.0 4 43.06 0.5x8 1.64x26.24 600 80.67
UFH-MAT150-5.0 5 53.82 0.5x10 1.64x32.8 750 64.53
UFH-MAT150.0 6 64.58 0.5Ã—12 1.64x39.36 900 53.78
UFH-MAT150-7.0 7 75.35 0.5Ã—14 1.64x45.92 1050 46.1
UFH-MAT150-8.0 8 86.11 0.5Ã—16 1.64x52.48 1200 40.33
UFH-MAT150-9.0 9 96.88 0.5Ã—18 1.64x59.04 1350 35.85
UFH-MAT150-10 10 107.64 0.5Ã—20 1.64x65.6 1500 32.27
UFH-MAT150-12 12 129.17 0.5Ã—24 1.64x78.72 1800 26.89
UFH-MAT150-15 15 161.46 0.5Ã—30 1.64x98.4 2250 21.51
200w/m2
Part NO. Heat Area Mat dimensions Wattage(200w/m2) Resistance(Î©)
(m2) sq.ft (mxm) (inch x inch)
UFH-MAT200-1.0 1 10.80 0.5Ã—2 1.64x6.56 200 242
UFH-MAT200-1.5 1.5 16.15 0.5Ã—3 1.64x9.84 300 161.33
UFH-MAT200-2.0 2 21.53 0.5Ã—4 1.64x13.12 400 121
UFH-MAT200-2.5 2.5 26.91 0.5Ã—5 1.64x16.4 500 96.8
UFH-MAT200-3.0 3 32.29 0.5Ã—6 1.64x19.68 600 80.67
UFH-MAT200-4.0 4 43.06 0.5x8 1.64x26.24 800 60.5
UFH-MAT200-5.0 5 53.82 0.5x10 1.64x32.8 1000 48.4
UFH-MAT200.0 6 64.58 0.5Ã—12 1.64x39.36 1200 40.33
UFH-MAT200-7.0 7 75.35 0.5Ã—14 1.64x45.92 1400 34.57
UFH-MAT200-8.0 8 86.11 0.5Ã—16 1.64x52.48 1600 30.25
UFH-MAT200-9.0 9 96.88 0.5Ã—18 1.64x59.04 1800 26.89
UFH-MAT200-10 10 107.64 0.5Ã—20 1.64x65.6 2000 24.2
UFH-MAT200-12 12 129.17 0.5Ã—24 1.64x78.72 2400 20.17
UFH-MAT200-15 15 161.46 0.5Ã—30 1.64x98.4 3000 16.13

Packaging & Shipping

Certifications

FAQ

Why Use Us?
As a professional ISO 9001:2005 certificated supplier of underfloor heating kits manufacture, we offers only the highest quality products backed by exceptional guarantees and expert customer services.
Quality Electric Systems
â€¢ Our cables are manufactured using twin metalconductors, no wattage lose.
â€¢ FEP insulation, max maintain temp 200 ºC, high insulation resistance,1000 times than IEC60800:2009 standard.
â€¢ Strict QC system: products 100% inspected.
â€¢ Provide whole heating solution: offer full range of products and accept customized products.
Warranty
â€¢ When you buy from us, you can be confident in the durability and longevity offered from all our products, but we also offer the peace of mind that comes with our 25 years limited warranties.
Qualified Team
â€¢ As a professional underfloor heating manufacture, we have the knowledge and expertise to advise our customers on everything from the preparation of sub floors and installation to compatibility of our products with your desired floor finish.
â€¢ Most of our employees are all working in heating cable industry for more than 15 years.
â€¢ professional and responsible sales team provides full products solutions.
