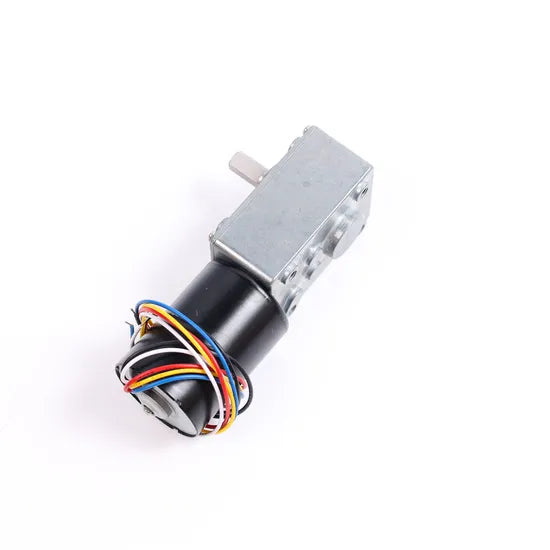

{"id":9399449420053,"title":"DC 370 Motor 12V 100rpm Metal Gear Electric Drive Worm Gear Motor","handle":"dc-370-motor-12v-100rpm-metal-gear-electric-drive-worm-gear-motor","description":"

Model NO.: 4632-370
Excitation Mode: Excited
Function: Driving
Casing Protection: Open Type
Number of Poles: 2
Structure and Working Principle: Brush
Type: Z2
Certification: RoHS, CE, ISO9001:2001
Brand: Xinhe Motor
Motor Type: Brushless or Brush
Gears Type: Worm Gear
Voltage: 6V, 12V, 24V
Gear Ratio: 40:1 to 1000:1
Speed: 6~300rpm
Materials: Metal Gears
Power: 1~10W
Encoder: 48CPR If Needed
Gear Box Size: 46*32mm
Noise: <45dB
Life Time: More Than 1000hours
Packing: Carton Packing
Payment Term: Tt
Transport Package: Cartons
Trademark: XINHE MOTOR
Origin: China
HS Code: 8501109990
Production Capacity: 20000/Month
Product: 4632 Worm Gear Reducer
Compatible Motor: 370 DC carbon brush motor or brushless motor with built-in drive
Applications: Office, home, automation, medical devices, security, consumer electronics, vending machines, photocopiers
6VDC Data Sheet - Model 4632-370-40: No load speed 150 rpm, No load current 100mA, Stall torque 6.4 kg.cm, Gear ratio 40:1
6VDC Data Sheet - Model 4632-370-65: No load speed 90 rpm, No load current 100mA, Stall torque 10 kg.cm, Gear ratio 65:1
6VDC Data Sheet - Model 4632-370-150: No load speed 40 rpm, No load current 100mA, Stall torque 24 kg.cm, Gear ratio 150:1
6VDC Data Sheet - Model 4632-370-200: No load speed 30 rpm, No load current 100mA, Stall torque 25 kg.cm, Gear ratio 200:1
6VDC Data Sheet - Model 4632-370-260: No load speed 23 rpm, No load current 100mA, Stall torque 25 kg.cm, Gear ratio 260:1
6VDC Data Sheet - Model 4632-370-340: No load speed 18 rpm, No load current 100mA, Stall torque 25 kg.cm, Gear ratio 340:1
6VDC Data Sheet - Model 4632-370-600: No load speed 10 rpm, No load current 100mA, Stall torque 25 kg.cm, Gear ratio 600:1
6VDC Data Sheet - Model 4632-370-1000: No load speed 6 rpm, No load current 100mA, Stall torque 25 kg.cm, Gear ratio 1000:1
12VDC Data Sheet - Model 4632-370-40: No load speed 150 rpm, No load current 60mA, Stall torque 6.4 kg.cm, Gear ratio 40:1
12VDC Data Sheet - Model 4632-370-65: No load speed 90 rpm, No load current 60mA, Stall torque 10 kg.cm, Gear ratio 65:1
12VDC Data Sheet - Model 4632-370-150: No load speed 40 rpm, No load current 60mA, Stall torque 24 kg.cm, Gear ratio 150:1
12VDC Data Sheet - Model 4632-370-200: No load speed 30 rpm, No load current 60mA, Stall torque 25 kg.cm, Gear ratio 200:1
12VDC Data Sheet - Model 4632-370-260: No load speed 23 rpm, No load current 60mA, Stall torque 25 kg.cm, Gear ratio 260:1
12VDC Data Sheet - Model 4632-370-340: No load speed 18 rpm, No load current 60mA, Stall torque 25 kg.cm, Gear ratio 340:1
12VDC Data Sheet - Model 4632-370-600: No load speed 10 rpm, No load current 60mA, Stall torque 25 kg.cm, Gear ratio 600:1
12VDC Data Sheet - Model 4632-370-1000: No load speed 6 rpm, No load current 60mA, Stall torque 25 kg.cm, Gear ratio 1000:1
Company Specialization: AC and DC motors for various devices
Company Product Range: Kitchen appliances, air flow products, power tools
Company Expertise: Experienced engineers with extensive application expertise
Company Global Presence: Sales in over 20 countries
Company Compliance: EU & America regulations (CE standards, RoHS, etc.)
Company Management Systems: ISO9001:2001 certified
Company Offerings: Customer-specific motion solutions
